D-Encapsulant Cable Filler

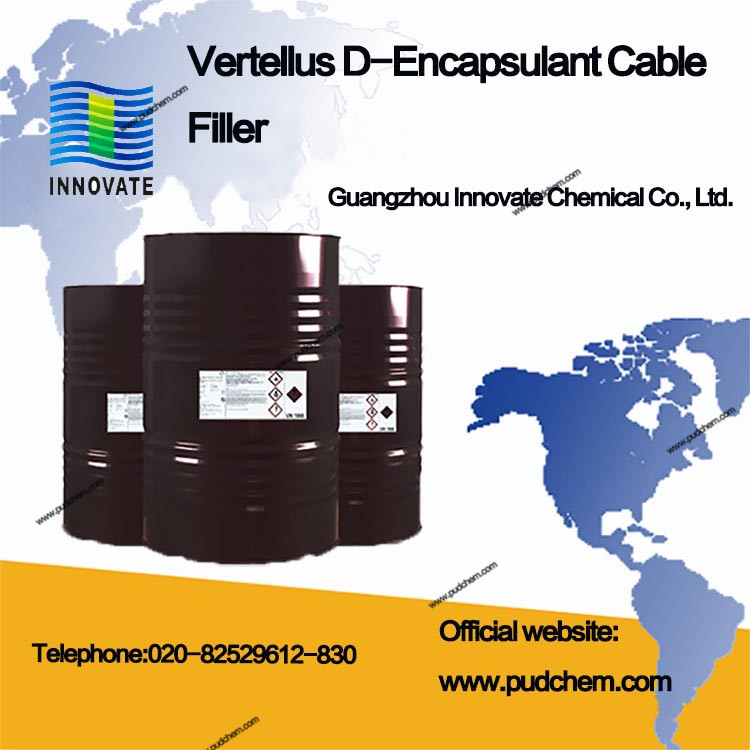

Vertellus D-Encapsulant Cable Filler

D-Encapsulant Cable Filler

describe
Vertellus D-Encapsulant is a two-component elastic polyurethane compound for fiber optic and copper cable fill applications. It has low viscosity and extended pot life to form an effective water seal, as well as excellent flexibility, electrical properties and long-term stability. This product is especially suitable for environmental protection of electrical equipment.

Typical Characteristics

The data listed in this product literature are typical results of the product for the purpose of description. They are not intended to be used to establish product specifications. The compound can be used or tested for purposes after one week at room temperature. Accelerates healing within 18 hours at 60 degrees Celsius, and accelerates healing within 6 hours at 80 degrees Celsius.

Process performance

Viscosity (at 25 C, ASTM D-2393)
Vorite® 715-M1	130 cP.
Polycin® 934-M4	315 cP.
Specific Gravity (ASTM D-1875)
Vorite® 715-M1	1.008
Polycin® 934-M4	0.894
Mix Ratio (Vorite® 715-M1/Polycin® 934-M4)
By weight	17/83
By volume	15/85
Mixed Viscosity (at 25 C)	300 cP.
ASTM D-2393
Gel Time (at 25 C, 100g)	17-20 hours
CC-410
Hardness (Shore OO)	55
ASTM D-1484
Peak Exotherm (100g mass)	32 C
ASTM D-2471
Shrinkage on Curing	0.5%
ASTM D-2566
Tensile Strength	25 psi
ASTM D-412
Elongation	130%
ASTM D-412
Tear Strength	5 pli
ASTM D-624
Young's Modulus of Elasticity	33 psi
ASTM D-638
Compression Modulus	22 psi
ASTM D-695
Brittleness Temperature	< -50 C
ASTM D-746
Thermal Conductivity	0.718 Btu in/hr ft2 F
ASTM C-177
Thermal Expansion	5.4 x 10-5 cm/cm C
ASTM D-696 modified

Electrical properties

Dielectric Constant (1 KHz)	3.3
ASTM D-150
Dissipation Factor (1 KHz)	0.04
ASTM D-150
Volume Resistivity (ohm-cm)	7 x 1013
ASTM D-257
Insulation Resistance	2 x 1013 ohms
Telcordia MS17000

Stability characteristics

Moisture Absorption
168 hrs, 24 F water	0.1%
Hydrolytic Stability (168 hrs, boiling water)
Weight change	+0.5%
Hardness change (Shore OO)	- 5
Dry Heat Aging (500 hrs, 100 C)
Weight change	-4.0%
Hardness change (Shore OO)	0
Insulation Resistance	1.2 x 1010 ohms
675 hrs, 35 C/95% RH
Hydrogen Generation	0.37 l/g
48 hrs, 176 F (GC/MS)
Component Flash Point (ASTM D-3828)
Vorite 715-M1	> 200 C
Polycin 934-M4	> 218 C
Component Pour Point (ASTM D-197)
Vorite 715-M1	-36 C
Polycin 934-M4	-34 C

performance attributes

Corrosion of Copper	non-corrosive
Telcordia MS-17000
Fungus Resistance	0 growth
ASTM G-21
Volumetric Expansion	0%
Telcordia TR-NWT-000354
Water Sensitivity (Expansion)	0%
Telcordia TR-NWT-000354
Polyethylene Stress-Cracking	Passes
Telcordia MS17000
Polycarbonate Stress-Cracking	Passes
Telcordia TR-NWT-000354
