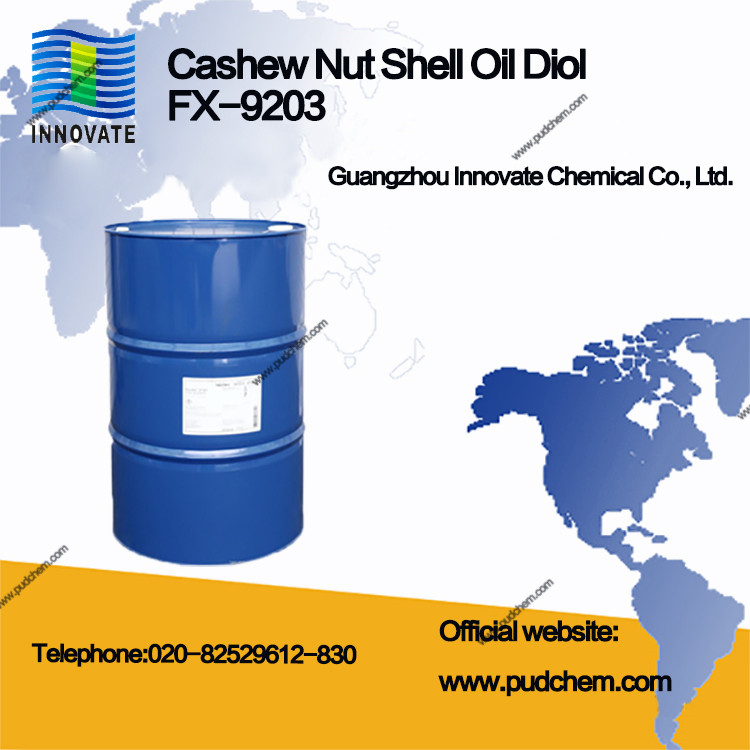

Cashew Nut Shell Oil Diol FX-9203
|
performance |
Numerical value |
|
Polyol Type |
Cashew Nut Shell Oil Diol |
|
Viscosity, (cps) @ 25 °C |
2200-5200 |
|
Hydroxyl value (mg KOH/g) |
80-115 |
|
Moisture, % |
≤0.1 |
|
Color (Ghanaian Law) |
14 |
|
Calculated biological content |
69 |
|
Gel time with polymerized MDI (min) |
≤20 |
|
Recommended Applications |
glue |
Product Positioning:
①Best compatibility
②Hydrolytic stability
③Low moisture sensitivity
④Good compatibility with PolyBD: good moisture resistance and mechanical properties
Applications:
①1K and 2K polyurethane adhesives and sealants
②Thermoplastic polyurethane (TPU)
③Polyurethane dispersion (PUD)
④Polyurethane reactive hot melt adhesive
⑤Polyurethane prepolymer, adhesive, co-reactant
⑥ foam, soft foam
compatibility:
|
performance |
FX-9203/FX-9203LP |
|
PPG 1000 |
100% Compatible |
|
PPG 2000 |
100% Compatible |
|
Poly BD |
100% Compatible |
|
EVA |
100% compatible, cloudy |
|
Tackifier (Wingtack 10) |
100% Compatible |
|
Tackifier (Indopol H300) |
incompatible |
Reactivity:
|
FX-9203 |
|
|
Isocyanate |
Gel time @ 25 °C |
|
HDI |
16'31" |
|
IPDI |
3h 43' |
|
MDI |
2h 21' |
Guidelines for making stable prepolymers from glycols:
|
prepolymer synthesis |
FX-9203 |
|
Isocyanate Type |
Only suitable for aliphatic isocyanates such as IPDI, HDI |
|
Parts of isocyanate |
>3-4% |
|
Catalyst for Prepolymer Reaction |
More stable without catalyst addition, but can also be added in small amounts |
|
Remark |
Suitable for prepolymer synthesis if the above conditions are met and guidelines are followed |
Thermal stability: prepolymer
|
Cashew Nut Shell Oil Diol: 3% NCO Prepolymer (Pure MDI) |
RT |
80 ºC |
120 ºC |
|
FX-9203 |
X |
X |
X |
Recommendations to improve thermal stability:
①No catalyst
② Benzoyl chloride as stabilizer
③Nitrogen protection
Prepolymer (NCO7%):
|
7% NCO prepolymer |
Prepolymer Viscosity (cps at 25°C) |
Tensile strength (MPa) |
Elongation(%) |
Modulus (MPa) |
Shore A hardness |
|
FX-9203/FX-9203LP |
21056 |
5.1/6.5 |
82.8/96 |
32.6 |
82 |
Viscosity:
|
Diols |
Viscosity (cps, @ 25 °C) |
Viscosity (cps, @ 40 °C) |
|
FX-9203 |
2950 |
843 |
2K Polyurethane Properties:
|
Diols |
Al sandblasted aluminum sheet lap shear |
Strength, MPa (4h/70°C+1hr/ 120°C), MPa |
Tensile Strength(4h/ 70°C+1hr/120°C), % |
Tg (4h/70°C+1hr/ 120°C), °C |
|
FX-9203 |
0.72 |
0.57 |
62 |
-18 |
